Air Quality Monitor (ESP32)

About this project

An ESP32 reads PM2.5 from a Plantower PMS5003 and temperature/humidity from a DHT22, builds one small JSON reading, and publishes it over MQTT every few minutes — a real, low-power publish interval, not a demo shortcut. A small Flask dashboard subscribes to every sensor's topic and shows the latest reading per location, with a CPCB PM2.5 category badge.

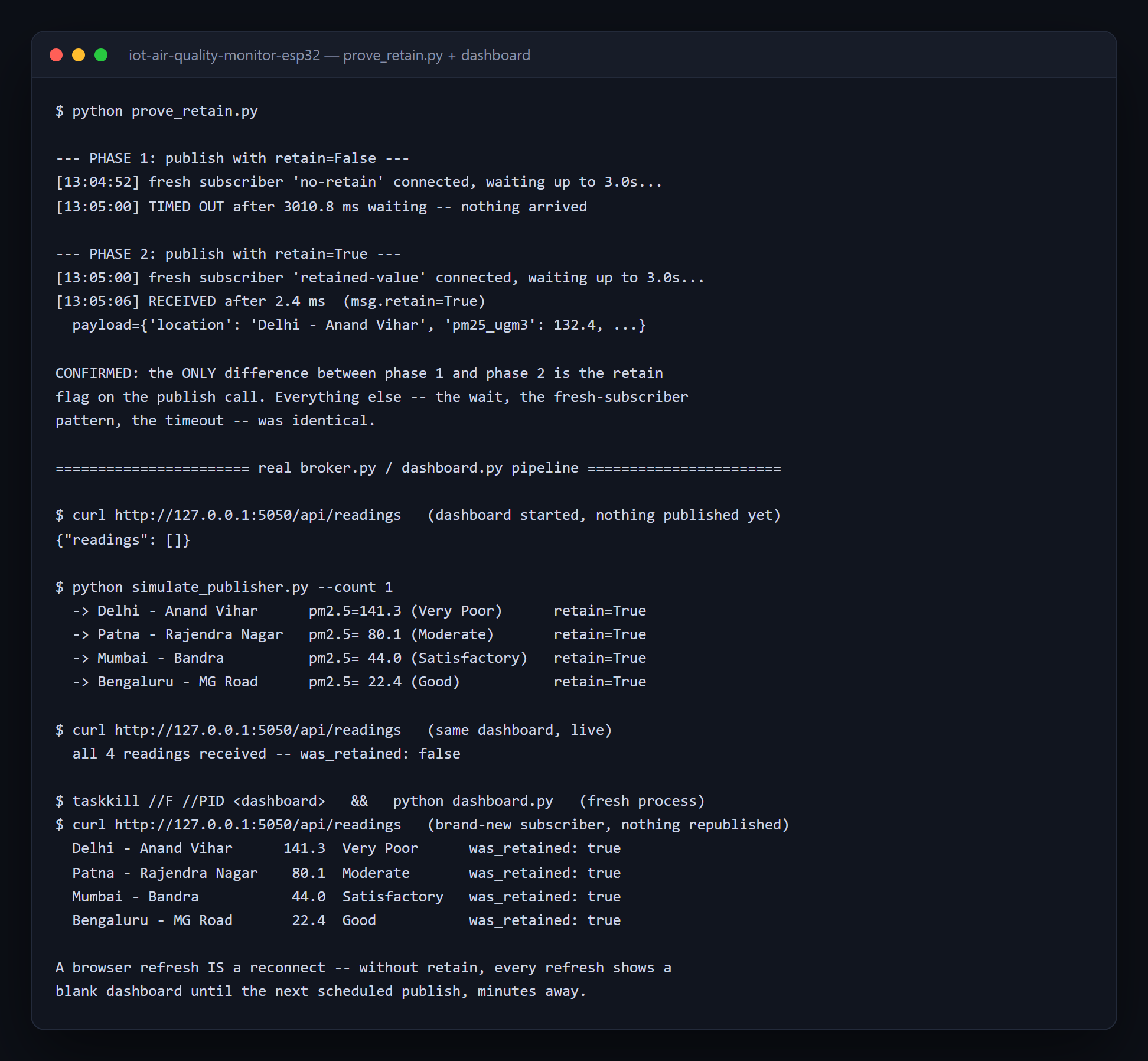

A dashboard that only reacts to new MQTT messages shows blank or stale data every single time it connects or reconnects — and a browser refresh is a reconnect — until the next publish actually happens. That is not a bug in Flask or in this dashboard's own code; it is how a plain publish() with no retain flag works by design. The fix is one flag on the exact same publish call: MQTT's own retain flag, which asks the broker — not the publisher, not the subscriber — to remember the last value on a topic and hand it to any client that subscribes afterwards, immediately. Proven with a real, timed standalone script (a fresh subscriber times out after 3+ seconds with no retain, then receives the same reading in under 3 milliseconds with it), and again through the actual broker/dashboard/publisher pipeline: a dashboard restarted after publishing shows every reading instantly, tagged as retained, instead of sitting blank until the next scheduled reading arrives.

What you will learn

• Understand MQTT publish/subscribe as a broker-mediated pattern, not a direct connection
• Explain why a late-connecting subscriber gets nothing without the retain flag, and prove it with a timed measurement
• Use the MQTT retain flag correctly on both an ESP32 publisher and a Python one
• Read and apply India's CPCB PM2.5 breakpoints, with their real limitations honestly disclosed
• Reuse the exact retain pattern in any pub/sub system where state changes slowly and clients reconnect

Before you start

• Arduino/C++ basics and this catalogue's arduino-weather-station or iot-plant-watering-system
• Basic Python — reading a Flask app and an MQTT client
• An ESP32 dev board, a PMS5003 and a DHT22 for real hardware use — none needed to install, verify, or read this project

New to ESP32? The free ESP32 course covers everything this project assumes.

Features

• A real, timed proof of the retain flag: a measured 3-second timeout with no retain vs. sub-3ms delivery with it
• A real MQTT broker (amqtt) running locally — no cloud account, Mosquitto install, or ESP32 needed to verify
• A four-locality simulated sensor fleet publishing genuine JSON readings over a real MQTT connection
• India's CPCB PM2.5 category breakpoints, reproduced exactly as published, with both simplifications named honestly
• A real ESP32 sketch — PMS5003 frame parsing and DHT22 bit-timing reasoned through against their datasheets
• The exact same retain pattern generalised to any slow-changing pub/sub system — e.g. a ride-hailing driver-location topic

Technology stack

Track: IoT & Hardware · Level: Pro

What is included

• air_quality_sensor.ino, aqi_common.py, broker.py, dashboard.py, simulate_publisher.py and prove_retain.py — commented throughout
• A README with wiring diagram, parts list, CPCB category table, and the real timed retain-flag proof
• prove_retain.py — an isolated, self-contained proof script, runnable with zero other project files running

Delivered as a 36 KB ZIP. SHA-256 published under Changelog so you can verify it.

System requirements

Operating system

Any (Arduino IDE for the real sketch)

Runtime

Python 3.10+. An ESP32, PMS5003 and DHT22 for real hardware use.
